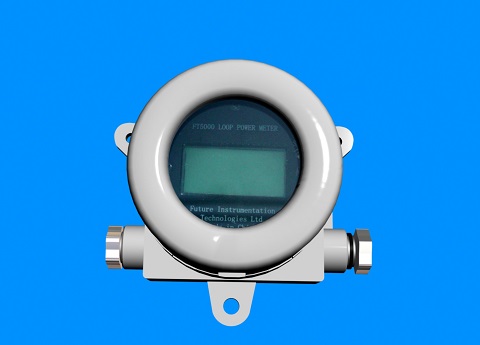

FT5001 Passive Digital Meter

 FT5001 serial passive digital meter is suitable for field indication of level、pressure、flow etc standard process 4～20mA signal. Since the product adopts passive method so it could be used in most industrial or civil applications. There is no special requirement needed for installation compare to other instruments both in indoor or outdoor.  FT5001 serial passive digital meter is a general purpose display meter, composed of an electronic unit and an explosion-proof housing.

》》》》Specifications

Input signal range：3.6～22mA

Power Supply：standard  4～20mA loop power, automatic connect to the power supply, voltage drop less than 1.6V

Resolution：0.1mV (standard 10Ωsampling resistance)

Accuracy：0.5%

Ambient Temp.： -10℃～+75℃

Display type：3 1/2 LCD, display width φ60 mm(2.36″)

Connection：directly connect into(in series) standard 4~20mA loop

Decimal point: Field selectable

Adjustable zero/span setting

Electrical connection：double M20×1.5

Ingress Protection：meet IP66 or IP67（ IEC60529:2001 Housing Protection classification）

EMC：meet IEC61326：1997+A1: 1998 standard requirements
